Heat Shrink Chamber Machines
From: £1,630.87
- Customizable settings for welding duration, temperature, and shrinkage time
- Adjustable height for the heat shrink chamber table
- Configurable film feed width
- Option for pre-perforating the film
- Equipped with an electromagnet to secure the thermal chamber lid
- Mounted on a wheeled cart for easy mobility
- Compatible with both polyvinyl chloride (PVC) and polyolefin (POF) films
- ST455 – Powerful high-capacity heat sealing & extendable weld cooling time
- Open Full Specification Sheet
More Info
Product Code
Heat Shrink Chamber Machines
Price per Unit
Price
Quantity
SHR-MA-004 (SC134)

SHR-MA-004 (SC134)

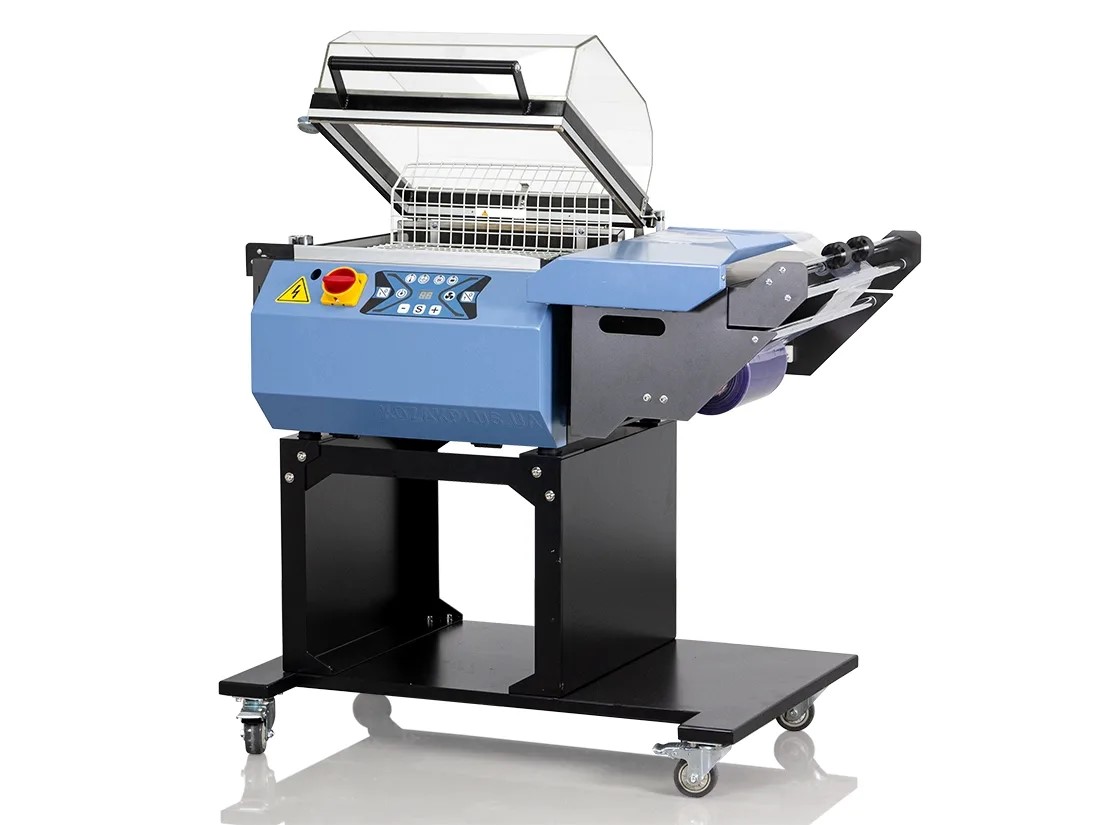

Heat Shrink Chamber (EKH-134 / SC134)
£1,630.87
Heat Shrink Chamber Machines
Heat Shrink Chamber (EKH-134 / SC134)
SHR-MA-004 (SC134)Heat Shrink Chamber EKH-134 (SC134)
Machine Operating Modes
- Welding, Trimming, and Heat Shrinking: This is the standard mode for typical products. Once the chamber lid is closed, all processes are executed in sequence, and the lid is opened after all operations are completed.
- Delayed Welding, Trimming, and Heat Shrinking: This mode allows for a cooling period for the weld, ensuring that the heat shrinking process proceeds without any disturbances.
- Sealing and Trimming: This mode is particularly effective for smaller items, such as CDs or business cards. Heat shrinking is initiated only after the chamber is fully loaded with the individual products.
Specifications
- Welding Unit (chamber) size mm: 460mm depth x 320mm length
- Maximum package size (L x W x H)mm: 450mm x 290mm x 120mm
- Productivity (packages/hour): 300-400
- Maximum dimensions of heat-shrink film, mm: 500mm x 250mm
- Overall dimensions of machine (without trolley): 1120mm x 660mm x 550mm
- Height of working surface (with trolley)mm: 940mm
- Supply voltage, V: 220 (50 Hz)
- Standard Power Consumption, kW/hour: 1.6-1.9
- Maximum power, kW: 3.2
SHR-MA-005 (SC168)

SHR-MA-005 (SC168)

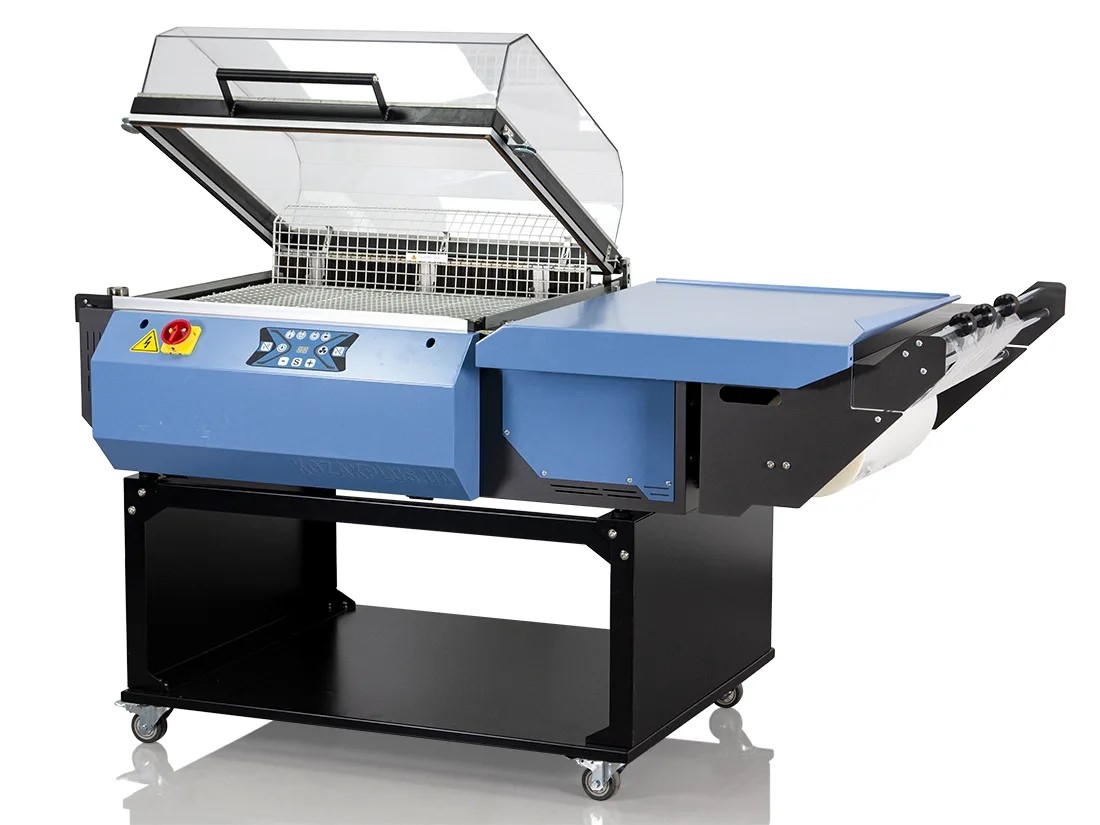

Heat Shrink Chamber (EKH-168 / SC168)
£2,730.75
Heat Shrink Chamber Machines
Heat Shrink Chamber (EKH-168 / SC168)
SHR-MA-005 (SC168)Heat Shrink Chamber EKH-168 (SC168)
Machine Operating Modes
- Welding, Trimming, and Heat Shrinking: This is the standard mode for typical products. Once the chamber lid is closed, all processes are executed in sequence, and the lid is opened after all operations are completed.
- Delayed Welding, Trimming, and Heat Shrinking: This mode allows for a cooling period for the weld, ensuring that the heat shrinking process proceeds without any disturbances.
- Sealing and Trimming: This mode is particularly effective for smaller items, such as CDs or business cards. Heat shrinking is initiated only after the chamber is fully loaded with the individual products.
Specifications
- Welding Unit (chamber) size mm: 800mm depth x 620mm length
- Maximum package size (L x W x H)mm: 770mm x 590mm x 250mm
- Productivity (packages/hour): 300-400
- Maximum dimensions of heat-shrink film, mm: 800mm x 250mm
- Overall dimensions of machine (without trolley): 1575mm x 1020mm x 645mm
- Height of working surface (with trolley)mm: 910mm
- Supply voltage, V: 380 (50 Hz)
- Standard Power Consumption, kW/hour: 2.3-3.4
- Maximum power, kW: 5.3
SHR-MA-002 (ST455)

SHR-MA-002 (ST455)

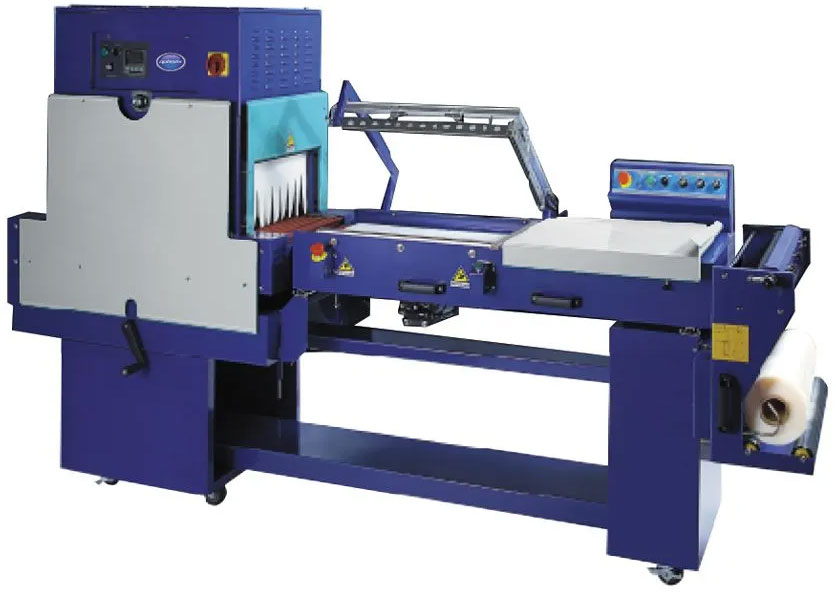

Sealer & Shrink Tunnel (ST455)
£3,429.27
Heat Shrink Chamber Machines
Sealer & Shrink Tunnel (ST455)
SHR-MA-002 (ST455)Sealer & Shrink Tunnel (ST455)
Key Features
- Reliable technology for higher volume PVC and polyolefin shrink wrapping.
- Fast and easy to operate: seal and shrink in one operation.
- Very low energy consumption.
- Advanced electronic controls.
- Lockable castors for easy mobility.
- Includes 12 month parts or return to base warranty.
Specifications
- Sealing dimension: 500mm depth x 400mm length
- Max height of package: 150mm
- Max dimension of film: 600mm x 350mm
- Tunnel Inlet Dimension 400mm x 220mm
- Working plate height 900mm
- Power supply: 400V 50Hz
- Max power consumption: 9.0Kw
- Machine dimensions: 2570mm length x 870mm width x 1600mm height
