Case Taper Machine
From: £2,368.00
- Top & Bottom Belt Driven options
- Side Belt Driven Options
- High-speed packing of 30 cartons per minute
- Cost-effective entry machine to introduce into your packing operation
- Printed tapes are also compatible to use with this Optimax® Case Taper, great for showcasing your brand.
| Range | Discount |
|---|---|
| 1 | 0% |
| 2 + | 10% |
More Info
Product Code
Option Name
mm
cm
in
Price per Unit
Price
Quantity
CT40U
CT40U

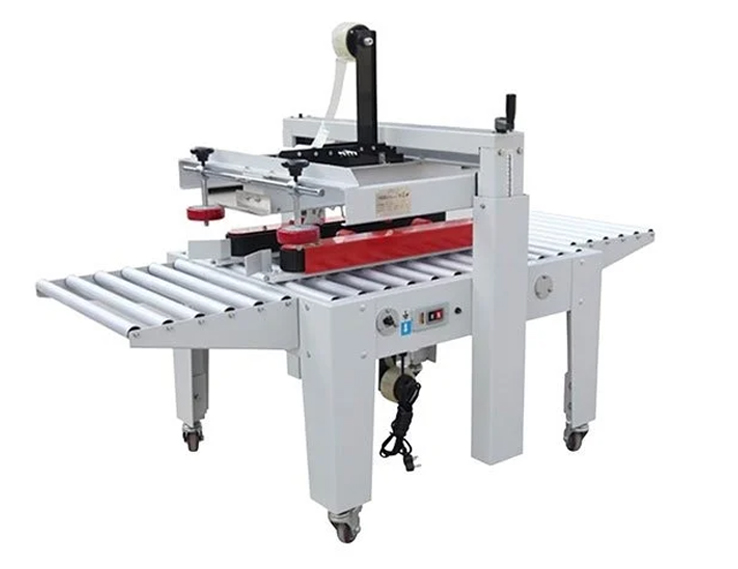

Semi-Automatic Uniform Case Taper Side Belt Driven
Semi-Automatic Uniform Case Taper Side Belt Driven
Semi-Automatic Uniform Case Taper Side Belt Driven
£2,368.00
Case Taper Machine
Semi-Automatic Uniform Case Taper
CT40UFeatures
- Cost effective and high speed
- Easy size changeovers
- For integration into a production line or as a standalone machine
- Features side drive belts, upper and bottom tape head, ideally suited for narrow cartons
Specifications
- Dimensions (W x D x H): 1750 x 880 x 1300-1500mm
- Width of adhesive tape: 36mm, 48mm (Optional)
- Max. carton size (W×H): 500mm x 500mm
- Min. carton size (W×H): 80mm x 90mm
- Packing speed: 20m/min (30 cartons per min)
- Power supply: 200-240V, 50Hz
- Height of table: 580mm-780mm
CT45U
CT45U

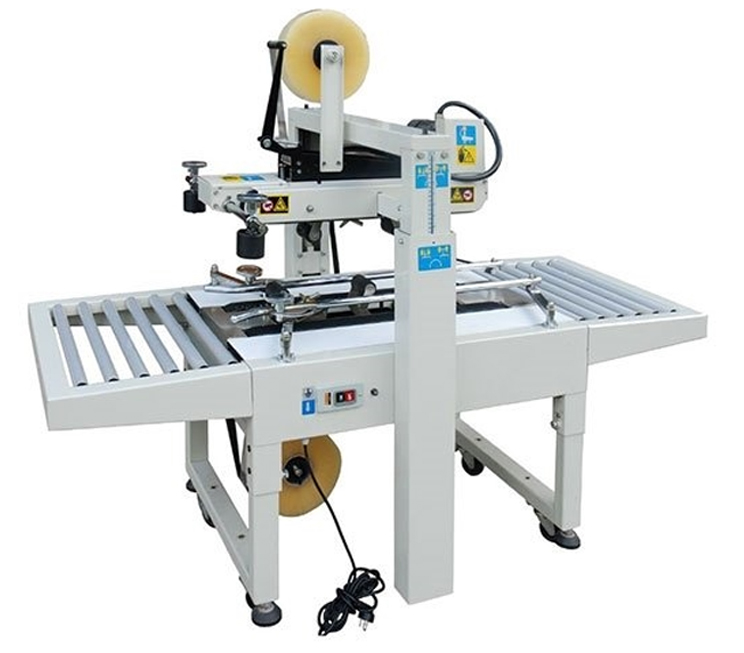

Semi-Automatic Uniform Case Taper Top & Bottom Belt Driven
Semi-Automatic Uniform Case Taper Top & Bottom Belt Driven
Semi-Automatic Uniform Case Taper Top & Bottom Belt Driven
£2,649.00
Case Taper Machine
Semi-Automatic Uniform Case Taper
CT45UFeatures
- Best suited to batch sealing of uniform-sized cartons
- Simultaneous top and bottom carton flap sealing
- Increased productivity and a consistently professional finish
- Manual upper sealing head height adjustment
- Adjustable leg height and lockable swivel castors
- Infeed and outfeed roller conveyors
Specifications
- Dimensions (W x D x H): 1637 x 756 x 1375mm
- Width of tape: 50mm
- Min/Max carton width: 150mm-500mm
- Min/Max carton height: 120mm-500mm
- Min/Max carton length: 120mm-unlimited
- Packing speed: 23 metres per minute
- Power supply: 200-240V, 50Hz
- Height of table: 680mm-880mm
CT50R
CT50R

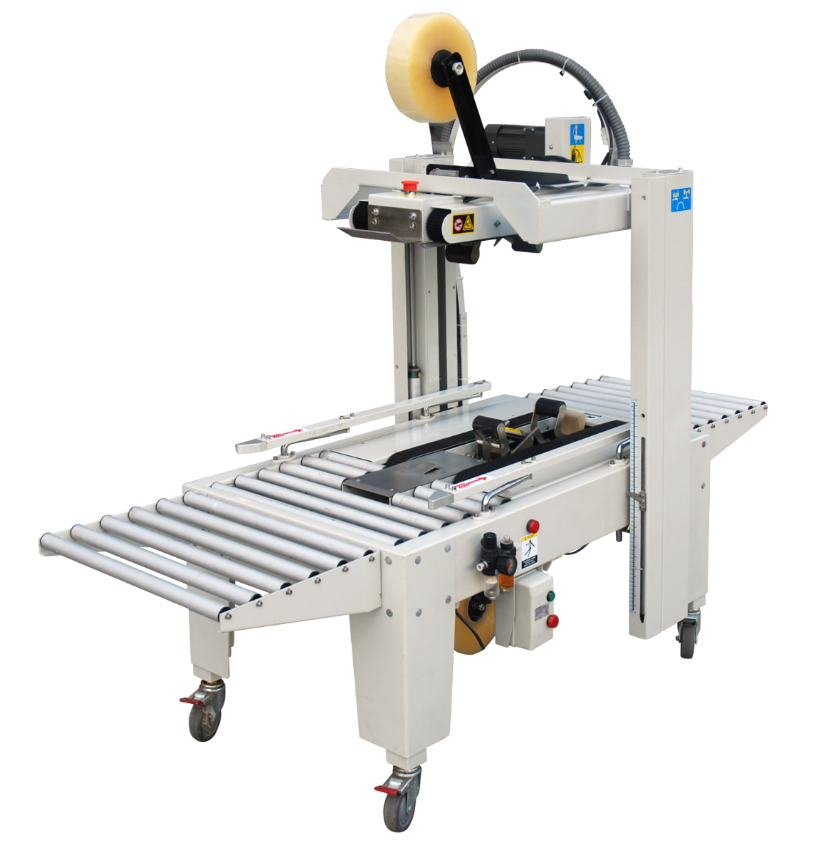

Semi-Automatic Random Case Taper Top & Bottom Belt Driven
Semi-Automatic Random Case Taper Top & Bottom Belt Driven
Semi-Automatic Random Case Taper Top & Bottom Belt Driven
£3,998.00
Case Taper Machine
Semi-Automatic Random Case Taper
CT50RFeatures
- Best suited to sealing of random-sized cartons
- Simultaneous top and bottom carton flap sealing
- Increased productivity and a consistently professional finish
- Sensor-driven upper sealing head height adjustment
- Adjustable leg height and lockable swivel castors
- Easy-loading upper and lower 50mm wide tape heads
Specifications
- Dimensions (L x W x H): 1170 x 930 x 1550mm
- Width of tape: 50mm, 75mm (optional)
- Min/ Max carton width: 150mm-500mm
- Min/ Max carton height: 120mm-500mm
- Min/ Max carton length: 120mm-unlimited
- Table height: 680mm-880mm
- Packing speed: 23 meters per minute
- Power supply: 240V 50Hz
- Power consumption: 450W
- Weight: 236kg
Description
Optimax® Semi-Automatic Uniform Case Taper – Side Belt Driven (CT40U)
Features
- Cost effective and high speed
- Easy size changeovers
- For integration into a production line or as a standalone machine
- Features side drive belts, upper and bottom tape head, ideally suited for narrow cartons
Specifications
- Dimensions (W x D x H): 1750 x 880 x 1300-1500mm
- Width of adhesive tape: 36mm, 48mm (Optional)
- Max. carton size (W×H): 500mm x 500mm
- Min. carton size (W×H): 80mm x 90mm
- Packing speed: 20m/min (30 cartons per min)
- Power supply: 200-240V, 50Hz
- Height of table: 580mm-780mm
Optimax® Semi-Automatic Uniform Case Taper – Top & Bottom Belt Driven (CT45U)
Features
- Best suited to batch sealing of uniform-sized cartons
- Simultaneous top and bottom carton flap sealing
- Increased productivity and a consistently professional finish
- Manual upper sealing head height adjustment
- Adjustable leg height and lockable swivel castors
- Infeed and outfeed roller conveyors
Specifications
- Dimensions (W x D x H): 1637 x 756 x 1375mm
- Width of tape: 50mm
- Min/Max carton width: 150mm-500mm
- Min/Max carton height: 120mm-500mm
- Min/Max carton length: 120mm-unlimited
- Packing speed: 23 meters per minute
- Power supply: 200-240V, 50Hz
- Height of table: 680mm-880mm
Optimax® Semi-Automatic Uniform Case Taper – Top & Bottom Belt Driven (CT50R)
Features
- Best suited to sealing of random-sized cartons
- Simultaneous top and bottom carton flap sealing
- Increased productivity and a consistently professional finish
- Sensor-driven upper sealing head height adjustment
- Adjustable leg height and lockable swivel castors
- Easy-loading upper and lower 50mm wide tape heads
Specifications
- Dimensions (L x W x H): 1170 x 930 x 1550mm
- Width of tape: 50mm, 75mm (optional)
- Min/ Max carton width: 150mm-500mm
- Min/ Max carton height: 120mm-500mm
- Min/ Max carton length: 120mm-unlimited
- Table height: 680mm-880mm
- Packing speed: 23 meters per minute
- Power supply: 240V 50Hz
- Power consumption: 450W
- Weight: 236kg
